programmable fast temperature changing chamber

MOQ ：1 set

Lead Time ：30 Days

Inquiry Start Order

Seller Support : Trade Authenticity Guaranteed & Accepting

Payment : L/C,T/T,Western Union

Departure Port : ShenZhen

Product details

Supply Ability

Supply Ability：50 piecesWarranty(Year)：1 Year

Packaging & Delivery

Length：1700 cmWidth：2200 cm
Height：2300 cm
Packaging：1 set

Product Specifications

Brand name：ASLi

Product Description

fast temperature change rates test chamber

1. Application:

Fast Temperature Change Test Chamber is used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of electronic products, electric appliance,and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials,medical and aerospace industries.

2.Accessories:

Inner door with operation hole (optional)

50mm or100mm Entrance hole for test wire, Dia.50mm or 100mm

Sample Shelves, two layers

R232 or R485 communication Interface

3. Features:

1. Graceful appearance, circularly shaped body, surface treated with mist strips, and plane handle with no reaction.Easy to operate, safe and reliable.

2. Rectangular double-glassed watching window for the observation of the test production during the testing process. The window is equipped

with sweat-proof electrical heating device that can prevent water steam from condensing into droplets, and with high brightness

PL fluorescent bulbs to provide light inside the box.

3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.

4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.

5. The French Tecumseh brand is used for the circulation system of the compressor, capable of removing the lubricant between the condensation pipes and capillaries. The environment-protecting coolant is used for the whole series (R232,R404)

6. Imported LCD display screen is used for the control unit, capable of displaying the measured value as well as the set value and time.

7. The control unit has the functions of multiples segment program editing, and of quick or slope control of temperature and humidity.

8. Inserted mobile pulley, convenient for movement an relocation, with strong positioning screws.

4.Warranty: one year free warranty for whole set machine,lifelong time maintainance.

5.After-sale service: feedback within 2 hours after get the call.

Model	F-TH-150(A~F)	F-TH-225(A~F)	F-TH-408(A~F)	F-TH-800(A~F)	F-TH-1000(A~F)
Internal Dimension WxHxD( mm)	500x600x500	600x750x500	600x850x800	1000x1000x800	1000x1000x1000
Internal Dimension WxHxD (mm)	1100x1750x1600	1200x1800x1700	1250x1900x1900	1600x2050x2150	1700x2200x2300

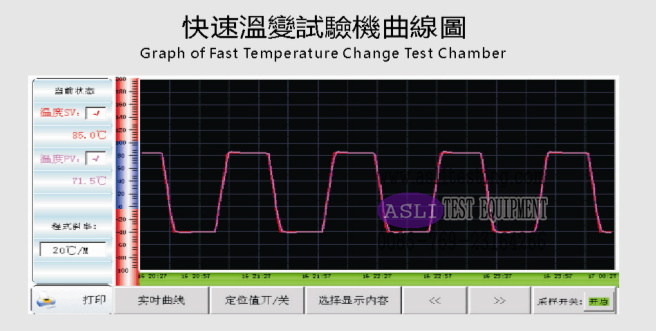

Range of Fast Temperature Change	Temperature Range: -70~+150℃; Range of Fast Temperature Change:-45~+85℃; Max. temperature rising/falling speed is 15℃/min when the whole process with linear control .
Humidity Range(Optional)	20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is a special optional condition, need Dehumidifier)
Analytic Accuracy/Distribution Uniformity of Temperature and Humidity	0.1℃; 0.1% R.H/±2.0℃; ±3.0% R.H.
Control Accuracy of Temperature and Humidity	±0.5℃; ±2.5% R.H.
Temperature Rising/Falling Speed Rate	The Temperature Rising/Falling Speed Rate with linear control : 3~15℃/min, adjustable The Temperature Rising/Falling Speed Rate non-linear control : 3~30℃/min, adjustable
Internal and External Material	Material of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or SEE cold-rolled steel with paint coated.
Insulation Material	Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials
Cooling System	Water cooling/single segment compressor
Protection Devices	Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over temperature protection switch, fuses, fault warning system, water short storage warning protection
Optional Accessories	Inner door with operation hole(Optional) , Water Purifier, Dehumidifier
Compressor	French Tecumseh Brand, Germany Bizer Brand
Power	AC380V 3∮ 5 lines, 50/60HZ
Approx. Weight(Kg)	250	350	450	600	700
